Walsin WR Thick Film Resistors
Walsin WR Thick Film Resistors

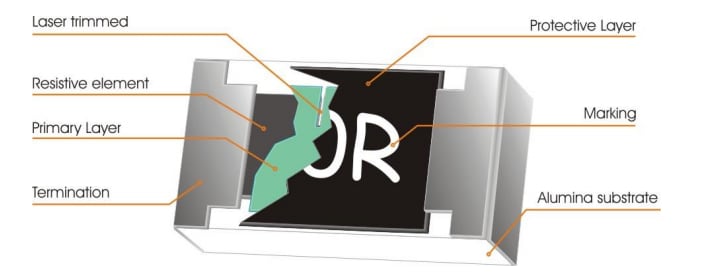

Walsin WR Thick Film Resistors feature high reliability, stability, and low assembly costs. These thick film resistors come with high component and equipment reliability, RoHS 2 compliance, and are Halogen-free. The WR thick film general-purpose chip resistors operate at -55°C to 155°C temperature range. These AEC-Q200 resistors are provided in Cut Tape, MouseReel, and Reel packaging styles. The WR resistors are constructed in a high-grade ceramic body (aluminum oxide). Typical applications include computer and telecom, consumer electrical equipment, and Electronic Data Processing (EDP).
Walsin WR Thick Film Resistors feature high reliability, stability, and low assembly costs. These thick film resistors come with high component and equipment reliability, RoHS 2 compliance, and are Halogen-free. The WR thick film general-purpose chip resistors operate at -55°C to 155°C temperature range. These AEC-Q200 resistors are provided in Cut Tape, MouseReel, and Reel packaging styles. The WR resistors are constructed in a high-grade ceramic body (aluminum oxide). Typical applications include computer and telecom, consumer electrical equipment, and Electronic Data Processing (EDP).
FEATURES
High reliability and stability
Reduced size of final equipment
Low assembly costs
High component and equipment reliability
RoHS 2 compliant
Halogen-free
SPECIFICATIONS
Resistance range:
1Ω to 10MΩ (±5% tolerance) jumper
1Ω to 10MΩ (±1% tolerance)
-55°C to 155°C operating temperature range
APPLICATIONS
Consumer electrical equipment
EDP and computer application
Telecom application
